What Is Tensile Stress? Principles, Calculation, and Applications

Tensile stress is one of the most overlooked causes of part failure-especially in precision manufacturing. A bracket shears under load, a snap-fit deforms after repeated use, a 3D-printed prototype cracks during testing. These aren’t machining issues. They’re material performance issues.

And often, they start with a misunderstanding of tensile stress.

At Geomiq, tensile performance is one of the key metrics our engineers and partners look at when advising on materials for CNC machining, 3D printing, and injection molding. It's built into our thinking at the quoting stage, baked into our materials database, and factored into every supplier’s quality standards.

In this guide, we’ll cover:

• What tensile stress actually is-and how it's different from tensile strength
• Why it matters in the real-world performance of your parts
• How Geomiq’s platform helps you avoid costly material mistakes from the outset

Understanding tensile stress isn’t academic-it’s essential to designing stronger, longer-lasting parts.

What Is Tensile Stress?

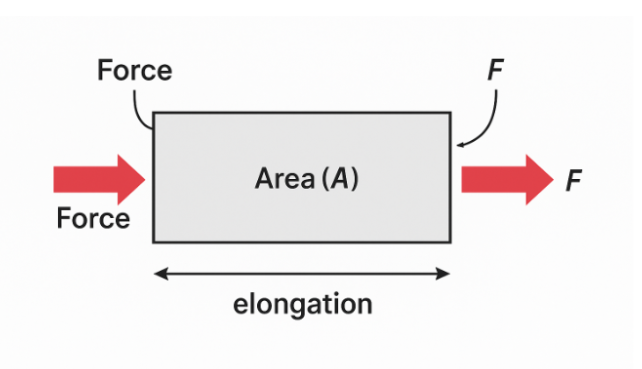

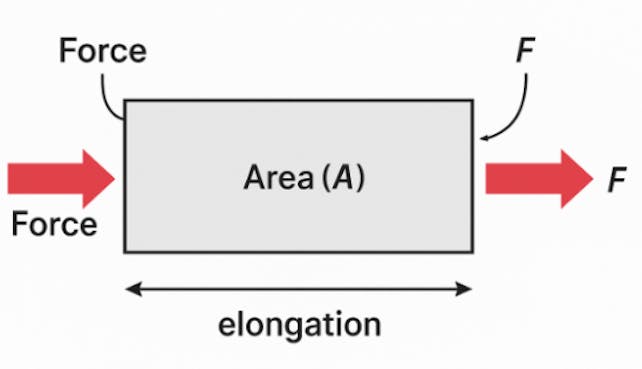

Tensile stress is the internal force per unit area within a material that resists being pulled apart. It occurs when a material is subjected to a tensile (pulling) force along its length, trying to elongate it.

If the applied load exceeds the material’s ability to resist it, the material stretches-and may eventually fail.

Formula for Tensile Stress

Tensile stress is a measure of the internal force exerted by a material when it is subjected to tension (stretching). It is calculated using the tensile stress formula:

σ=F/A

Where:

• σ = Tensile stress (in Pascals, MPa, or psi)
• FFF = Applied force (in Newtons or pounds)
• AAA = Cross-sectional area (in mm² or in²)

Understanding The Tensile Stress Curve

The tensile stress-strain curve is an essential concept when discussing materials under tension. This curve illustrates how a material deforms when subjected to increasing tensile stress.

When a material is subjected to a tensile force, the following properties related to its tensile behavior can be determined:

1. Elastic Region: The initial part of the curve where the material stretches but returns to its original shape once the load is removed. This region follows Hooke's Law, and the material behaves elastically.
2. Yield Point: The point at which the material begins to deform plastically (irreversibly). It marks the transition from elastic to plastic deformation.
3. Ultimate Tensile Strength (UTS): The highest point on the curve, representing the maximum tensile stress the material can withstand before necking (local reduction in cross-section area) begins.
4. Fracture Point: After reaching the UTS, the material eventually breaks or fractures. This point marks the material’s failure.

Applications of Tensile Stress

Tensile stress plays a critical role in a wide range of engineering and manufacturing applications. In engineering structures, tensile stress is a key factor in the design and integrity of components like beams, cables, and bridges.

Engineering Structures

For example, in the construction of suspension bridges, cables are subjected to significant tensile stress to support the weight of the bridge deck. The tensile strength of materials like steel and carbon fiber ensures the structure’s durability and ability to withstand heavy loads over time. Without proper consideration of tensile stress, these structures could fail under stress, leading to safety hazards.

Manufacturing Processes

In manufacturing processes, tensile stress is also a crucial factor. During metal forming and casting, materials are intentionally subjected to tensile stress to shape them into the desired form. The tensile strength of materials like aluminum and steel determines how well they hold up during processes such as stamping, forging, and extrusion. The way materials behave under tensile stress ensures that the final product can withstand the forces it will encounter during use.

Tensile Stress in 3D printing

Additionally, in 3D printing, the role of tensile stress is especially important. Materials used in 3D printing, such as PLA and ABS, must be selected based on their ability to endure tensile stress without fracturing. Tensile testing ensures that the printed parts maintain strength and durability, even under stress.

At Geomiq, we provide high-quality 3D printing services, where tensile strength is a key consideration in material selection and design. Whether you're working on rapid prototyping or low-volume production, our 3D printing service ensures that your parts meet the required mechanical properties, including tensile strength, to ensure optimal performance. For more information about our 3D printing capabilities, see Geomiq’s 3D printing service.

Engineer’s Note: Tensile stress is different from tensile strength. Stress is the applied force per unit area; strength is the maximum stress a material can withstand before failure. We’ll explore this distinction further in the next section.

Tensile Strength vs. Yield Strength: What You Need to Know

These two terms are often confused-but the difference between tensile strength and yield strength can be the line between a part that holds together and one that fails in the field.

Yield Strength: The Point Of No Return

Yield strength is the amount of stress a material can withstand before it deforms permanently. After this point, even if you remove the force, the material won’t return to its original shape.

• Why it matters: Yield strength determines the safe operating limits of a part. Exceeding this can cause warping, bending, or stretching-even if the part doesn’t break.

Tensile Strength: Maximum Load Before Breaking

Tensile strength (or ultimate tensile strength, UTS) is the maximum stress a material can handle while being stretched before it breaks.

• Why it matters: It tells you how much force a part can take before catastrophic failure. It’s crucial for parts under high tension or repeated loading.

Summary Table

Material Selection: Why It Starts with Tensile Stress

Choosing the right material isn’t just about cost or finish. Tensile performance is one of the most critical factors in how a part will behave in real-world conditions-especially under load, impact, or vibration.

Geomiq’s platform supports a wide range of materials for CNC machining, 3D printing, and injection moulding-each with its own tensile profile.

Factors That Affect Tensile Performance In Materials

• Material type - Metals vs. polymers vs. composites
• Internal structure - Crystalline vs. amorphous, isotropic vs. anisotropic
• Manufacturing method - 3D printed parts are often weaker along the Z-axis due to layer bonding
• Additives or reinforcements - E.g., carbon-fibre-filled nylon vs. standard nylon

Material Comparison Table

Choosing The Right Material On Geomiq

Geomiq simplifies material selection by:

• Providing pre-vetted mechanical properties for all listed materials
• Offering DFM feedback during quoting to flag weak points
• Letting you match parts to certified manufacturers experienced with high-stress applications

At Geomiq, you can choose from a wide range of materials for CNC machining, 3d printing materials and more.

Process-Specific Notes

• CNC machining: Tensile strength is mostly uniform across directions. Focus on metals with high UTS and good fatigue resistance.
• 3D printing: Consider anisotropy. Tensile strength is lower along layer lines (Z-axis). Reinforced materials like CF-Nylon offer better performance.
• Injection moulding: Tensile properties can vary based on flow orientation and cooling. Thin walls can concentrate stress and fail more easily.

How Geomiq Factors in Tensile Stress Across Manufacturing Services

Understanding tensile stress is one thing-factoring it into real-world manufacturing is another. That’s where Geomiq adds unique value.

Our platform doesn’t just offer instant quotes, it actively helps engineers and procurement teams avoid material mismatches, design oversights, and part failures by building tensile considerations into every stage of the workflow.

Whether you're sourcing a machined aerospace component, a 3D-printed bracket, or an injection-moulded housing, Geomiq ensures tensile performance is accounted for-by design.

Material Selection That’s Built For Performance

When selecting materials through Geomiq’s platform, tensile stress isn’t an afterthought-it’s a foundational factor. Every material offered through CNC machining, 3D printing, or injection moulding comes with verified mechanical properties, including tensile strength and yield strength. These values aren’t just theoretical; they’re backed by supplier data and, where needed, testing certifications.

Engineers can explore materials using detailed filters that go far beyond visual finish or cost. Tensile strength is one of the most commonly used filters, especially for parts expected to undergo sustained loads, impacts, or mechanical stress in operation.

For example, a designer uploading a mounting bracket for a robotic assembly can quickly compare aluminium alloys like 6061-T6 and 7075-T6-not just by cost and machinability, but by tensile performance under load.

What makes this workflow powerful is the Design for Manufacturing (DFM) analysis built into the quoting experience.

Utilizing a digital manufacturing platform enhances the implementation of simplicity in design, facilitating streamlined production and minimizing complexities for cost-effective and error-free manufacturing

Process-Aware Tensile Stress Optimisation

Tensile performance isn’t just about what material you choose-it’s also about how the part is made. Each manufacturing process has unique implications for how tensile stress behaves within a part, and Geomiq helps you factor those in.

CNC Machining

With CNC machining, the tensile performance of the final part closely matches the intrinsic properties of the raw material. Because the structure remains isotropic (properties are uniform in all directions), engineers can rely on consistent strength across axes.

However, design features like sharp internal corners, drilled holes, or sudden transitions can still act as stress concentrators, weakening the part under tension.

Geomiq’s DFM checks are particularly useful here. If a critical feature introduces a notch effect, the platform may suggest fillets or material upgrades to prevent localized failure under tensile loading.

3D Printing

For 3D printed parts, tensile performance is far more complex due to anisotropy-meaning strength can vary significantly depending on the orientation of the print.

In FDM (fused deposition modelling), for instance, tensile strength is much lower along the Z-axis due to weaker interlayer bonding. That means a part printed vertically may fail more easily under tension than one printed horizontally, even with the same geometry and material.

Geomiq supports designers by offering orientation-aware feedback. When a part is uploaded, the DFM engine considers its shape and intended use, offering recommendations on reorientation or switching to stronger materials like carbon-fibre-filled nylon.

The platform also clearly communicates the expected strength trade-offs between processes like SLS (Selective Laser Sintering), which offers better isotropic strength, and FDM, which may be more cost-effective but less mechanically robust in specific axes.

Injection Moulding

In injection moulding, tensile strength is impacted not only by the material but also by how the part flows during mould filling.

Molecular chains tend to align in the direction of flow, which can create directional strength differences. Additionally, rapid cooling or poor gate positioning can lead to internal stresses that reduce tensile performance even when the material itself has high tensile strength.

Geomiq's DFM tools are equipped to analyse these risks before a mould is even cut. The system helps identify thin walls that may become stress concentrators, detects potential weld lines that could weaken tensile performance, and recommends appropriate draft angles to minimise residual stress after ejection.

In all cases, Geomiq’s process-specific guidance is designed to help engineers not only choose the right material but also understand how manufacturing choices will affect the tensile performance of the final part.
