Thermoset Vs Thermoplastics

Polymers are the base of a large number of products, ranging from essential house items to complex industrial parts. They can be classified into two main types: thermosets and thermoplastics. Thermosets and thermoplastics, despite their similar names, are different materials. Each has distinct chemical properties that make them suitable for various applications. Thermosets vs thermoplastics is one of the most popular comparisons in the manufacturing industry. Choosing between thermoplastics and thermosets is based on their specific characteristics, affecting their effectiveness and appropriateness for particular uses. Engineers and manufacturers should know about the specific properties of these polymers and their differences, enabling them to make well-informed choices.

This article comprehensively compares these two polymer classes, detailing their properties, benefits, and performances. Understanding these materials will help you choose the right material for your project.

What are Thermosets?

Thermosets, also known as thermosetting polymers, are a type of polymer that retains its shape and properties when heat is applied after being cured. This material's macromolecular chains bond to form a cross-linked three-dimensional network. The term thermosetting refers to the irreversible hardening process that occurs when these polymers are exposed to heat, setting them permanently. Initially, thermosets are either liquid or soft solids at room temperature. When heated or when specific chemical catalysts are introduced, they undergo a chemical reaction called curing, which causes the polymer chains to cross-link. This cross-linking holds the molecules more firmly in position, transforming the material into a rigid, durable structure. The result is an impermeable, rigid polymer that cannot be remelted or reprocessed.

Examples of thermoset materials

Epoxy Resins

Epoxy resins are used in adhesives, coatings, and composite materials; epoxy resins provide excellent mechanical properties, chemical resistance, and thermal stability.

Phenolic Resins

Phenolic resins are commonly found in electrical insulators, automotive parts, heat-resistant handles, and industrial laminates. It is known for its heat resistance and electrical insulation properties.

Polyester

These are essential for fiberglass-reinforced plastics.

Polyimide

Polyimide is a high-performance thermoset that excels in applications requiring exceptional thermal stability and mechanical properties. It is commonly used in aerospace, electronics, and industrial components.

Applications of thermosets

Aerospace

Thermosets are used in the manufacture of aircraft components such as plane wings. They also serve as electrical insulation materials to protect the electrical systems.

Automotive

Thermosets are used in composite materials for body panels and components, such as hoods, doors, and trunk lids. They are also used as coatings and paints for automotive components, providing corrosion resistance and durability. Furthermore, thermosets are used as adhesives and sealants in automotive assembly and repair, ensuring strong bonds and weather-tight seals.

Construction

They are used as insulation materials in construction, providing thermal insulation and energy efficiency. They are also used to construct flooring and roofing materials, adhesives, and sealants.

Electrical and Electronics

They are used as insulation materials in electrical and electronic components, such as transformers, motors, and generators. They are also used as substrates for printed circuit boards, providing a durable and insulating base for electronic components.

Medical

Thermosets are used in various medical applications, including medical devices, such as implantable devices, surgical instruments, and diagnostic equipment. They are used as medical devices and equipment coatings, providing a durable, biocompatible surface.

Benefits of thermosets

Chemical Resistance

Thermosets are highly durable in corrosive chemical environments, resisting damage from aggressive substances. This resilience ensures their long-lasting performance and reliability in demanding applications.

Electrical Insulation

Thermosets often excel in providing electrical insulation, making them suitable for critical components like circuit breakers, insulators, and switches in electronic and electrical systems.

Dimensional Stability

Thermosets maintain their shape under stress and heat. They have reliable dimensional consistency, ensuring they prevent shrinking, expansion, or wrapping in precision applications.

Fire Resistance

Many thermosets inherently resist ignition and slow flame spread, making them essential for fire-safe applications.

Rigidity and Strength

Thermosets endure heavy loads and demanding conditions while maintaining structural integrity. This rigidity is possible thanks to its rigidity and impact resistance.

Thermal Resistance

Capable of withstanding extreme temperatures, thermosets retain their properties without deforming or melting, making them ideal for high-heat and harsh environmental applications.

Customization

Thermosets can be customized to specific needs, allowing manufacturers to design materials with unique features to meet particular performance and efficiency requirements.

Long-Term Durability

Thermosets are built for longevity, maintaining their mechanical and chemical properties over time and minimizing the need for frequent maintenance or replacements.

What are Thermoplastics

Thermoplastics are polymers that soften when heated and solidify upon cooling, a process that can be repeated without compromising material integrity. Unlike thermosets, thermoplastics do not undergo irreversible chemical changes during heating, as no chemical bonding occurs in the curing process. This unique characteristic makes thermoplastics highly versatile, recyclable, and ideal for various design possibilities. It also makes them excellent injection moulding materials. While their moldable nature allows for reshaping and reuse, it also makes them susceptible to deformation at high temperatures. However, thermoplastics excel in stable environments, offering cost-effective and sustainable solutions across numerous applications. This distinction highlights the fundamental differences in the properties and uses of thermoset vs thermoplastic materials.

Examples of thermoplastic materials

Polycarbonate (PC)

Polycarbonate is used in the manufacture of protective gear, eyewear lenses, and bulletproof glass.

Teflon (PTFE)

Famous for its non-stick properties, Teflon is commonly used in cookware coatings and as a lubricant in machinery. It also serves as a reliable material for chemical-resistant seals and gaskets.

Polyethylene (PE)

Polyethylene is commonly employed in packaging films, containers, and piping systems.

Acrylic

Acrylic is a transparent thermoplastic often used as a glass substitute in aquariums, displays, and windows.

Polyvinyl Chloride (PVC)

PVC is a durable material frequently used in plumbing pipes, electrical insulation, and flooring. Its resistance to water and chemicals makes it a reliable choice for construction and industrial uses.

Nylon

Nylon's strength and flexibility allow it to be used in products ranging from fabrics and ropes to musical instrument strings and industrial components. Its toughness makes it indispensable in a variety of applications.

Polypropylene (PP)

Polypropylene is resistant to chemicals and is utilized in automotive components, textiles such as carpets, and lab equipment.

Applications of Thermoplastics

Medical: Thermoplastics are crucial in creating medical tubing, syringes, surgical instruments, and diagnostic devices due to their biocompatibility, sterilizability, and suitability for single-use hygiene products.
Automotive: Widely used in manufacturing vehicle components like bumpers, dashboards, fuel tanks, and interior trims, thermoplastics enhance safety, reduce weight, and improve fuel efficiency.
Construction: Thermoplastics are employed in roofing membranes, durable piping, insulation panels, and flooring. Their resistance to weather, chemicals, and wear ensures long-lasting, cost-effective building materials.
Packaging: Known for being lightweight and durable, thermoplastics are used in producing containers, bottles, and packaging films. Their moisture and chemical resistance make them ideal for preserving food and other perishable goods.
Electronics: Thermoplastics provide casings for devices, wiring insulation, and connectors. They offer heat resistance, electrical insulation, and durability, ensuring product reliability and safety.

Benefits of Thermoplastics

Versatility: Thermoplastics can be molded into intricate shapes, making them suitable for applications in diverse industries like medical, automotive, and electronics.
Recyclability: They can be reheated and reshaped multiple times, reducing environmental impact and promoting sustainable manufacturing practices.
Lightweight: Their low density helps lower transportation costs, reduce energy consumption, and improve product efficiency in various applications.
Ease of Processing: Thermoplastics can be processed through techniques like injection moulding services, extrusion, and thermoforming, offering flexibility and efficiency in production.
Impact Resistance: Known for their toughness, thermoplastics can absorb shocks and endure mechanical stress, making them durable and reliable in demanding conditions.
Chemical and Corrosion Resistance: Thermoplastics resist moisture, solvents, and chemicals, making them ideal for applications in harsh environments where durability is essential.
Cost-Effective: Rapid production cycles and efficient mass manufacturing lower costs while maintaining precision and quality.

Differences between Thermoset and Thermoplastics

When comparing thermosets vs thermoplastics, several critical differences, including their structural properties, manufacturing processes, and performance in various applications, come to light.

Structural Features and Chemical Structure:

Thermosets' strong, heat-resistant, and chemically stable molecular structure is a result of their cross-linked, rigid structure. Cross-linking creates an irreversible bond as it cures, giving thermosets exceptional durability in harsh environments. On the other hand, the molecular structure of thermoplastics is more flexible and can be either linear or branching. Because of their structure, thermoplastics may be heated, melted, and molded repeatedly without experiencing irreversible chemical changes, which facilitates recycling.

Curing:

Heat, light, or chemicals that start a cross-linking reaction are used in the curing process of thermosets, which prevents the material from being molded or processed. Because of this characteristic, thermosets are perfect for uses requiring permanency, such as electrical and aerospace insulation. However, thermoplastics don't need to be cured. When heated, they become softer. They soften when heated, can be molded into any shape, and retain the ability to be remelted and reused multiple times, which enhances their recyclability and makes them cost-effective for high-volume manufacturing.

Heat and Chemical Resistance:

Thermosets excel in high-heat and chemically aggressive environments due to their stable, cross-linked molecular structure. This property makes them ideal for applications in which long-term durability and resistance to harsh conditions are required. Thermoplastics, while versatile, have lower resistance to heat and chemicals. This limits their use in extreme environments but makes them suitable for less demanding applications.

Processing Techniques:

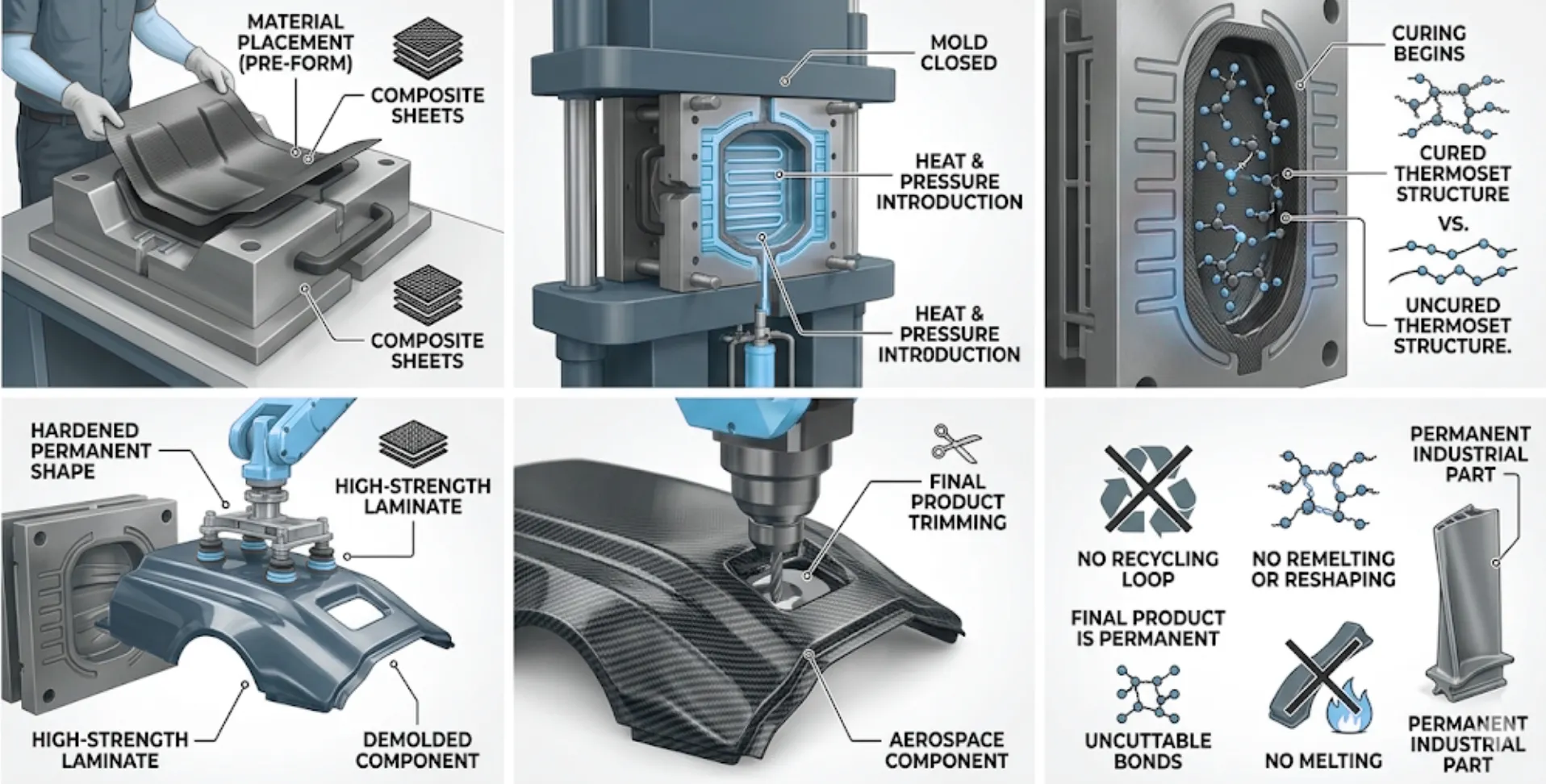

Thermosets must be processed using irreversible techniques such as reaction injection molding (RIM), compression molding, and resin transfer molding (RTM). These techniques create long-lasting solid components that, once set, cannot be manipulated again. However, methods like injection molding, extrusion, and thermoforming can be used to mold and remold thermoplastics. Thermoplastics are perfect for consumer goods and packaging because of these mass-production-friendly, quicker, and more flexible methods.

Applications and Cost:

Thermosets are appropriate for demanding industries, including electrical equipment, automotive, and aerospace, due to their high-performance qualities. They are frequently found in parts that must withstand high temperatures or stress. Thermoplastics are widely used in consumer items, medical devices, and packaging because they are simpler to process and recycle. Because they are easier to process and use less materials, they are more economical, especially for large-scale production.

Environmental Impact and Sustainability:

Recyclability is a key distinction between thermosets and thermoplastics regarding sustainability. Thermoplastics are a more environmentally responsible choice for waste reduction because they can be melted down and reused. If not recycled properly, they still take decades to break down. Thermosets have a long lifespan because of their toughness, but because of their irreversible curing process, they cannot be adequately recycled and frequently contribute to environmental trash.

The different properties of these polymers are caused by the underlying differences in their chemical structure. Understanding the differences between thermoset and thermoplastic materials is essential for selecting the appropriate material for specific applications and balancing factors like performance requirements, processing methods, cost, and sustainability.

Conclusion

In conclusion, the choice between thermoset vs thermoplastics relies on the specific demands of the application. Thermosets are known for their strength, thermal stability, and resistance to extreme conditions, making them ideal for aerospace, automotive, and heavy-duty industrial industries. These materials, once molded, cannot be remelted, offering unmatched durability in critical applications. On the other hand, thermoplastics offer superior recyclability, flexibility, and cost-efficiency, making them well-suited for packaging, consumer goods, and medical devices.

By understanding the key differences in properties and applications, businesses can optimize material selection to achieve the desired balance of performance, sustainability, and cost-effectiveness. Whether requiring the rigidity and heat resistance of thermosets or the versatility and recyclability of thermoplastics, both materials are important in modern manufacturing, particularly in injection molding. Through careful consideration of the unique features of each, industries can unlock the full potential of these materials to enhance their products and reduce environmental impact.
