PPAP: Production Part Approval Process in Manufacturing

The Production Part Approval Process (PPAP) is a critical element in manufacturing, particularly in industries like automotive, aerospace, and electronics. It ensures that a product meets the customer’s requirements and is consistently produced to the highest quality standards. This structured process helps manufacturers avoid costly mistakes by verifying that every part and component meets the specifications before mass production begins.

In this guide, we’ll explore PPAP’s meaning, the PPAP process, its five levels, and its importance in manufacturing. Understanding PPAP can improve product quality, strengthen supplier relationships, and ensure that your production line runs smoothly and efficiently.

What is PPAP? Definition and Meaning

The Production Part Approval Process (PPAP) is a standardized procedure used to ensure that manufacturers can produce parts that meet customer specifications consistently. This process is essential in industries with strict quality control standards, such as automotive, aerospace, and electronics.

PPAP Definition

In essence, PPAP is the documentation and set of procedures required to prove that a manufacturer can meet the required quality and production standards for a given part. The goal of PPAP is to confirm that parts can be consistently produced without defects and that the process is stable before mass production begins.

PPAP Meaning in Manufacturing

In manufacturing, PPAP acts as a critical checkpoint to ensure that both the product and the manufacturing process meet the customer’s engineering and quality requirements. It is not just a one-time approval; PPAP ensures continuous compliance throughout production. By completing this process, manufacturers can minimize risks, reduce defects, and avoid costly production delays.

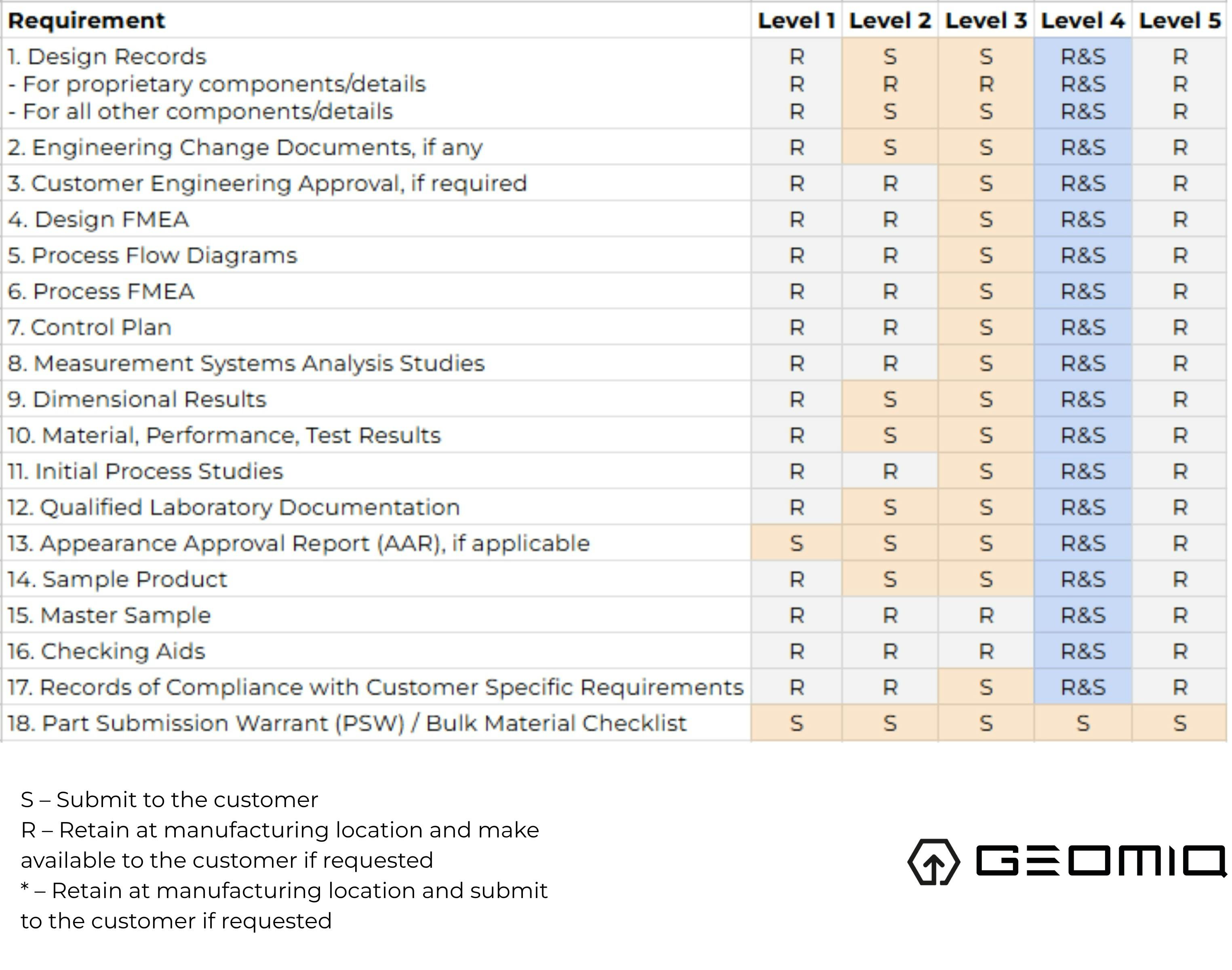

The 5 Levels of PPAP

The PPAP process is divided into five distinct levels, each varying in the amount of documentation and evidence required. These levels ensure that the supplier can demonstrate their ability to meet product specifications and quality standards at different stages of production. Here's a breakdown of the 5 levels of PPAP:

Level 1: Part Submission Warrant (PSW) Only

This is the simplest level, where the supplier submits the Part Submission Warrant (PSW) to the customer. At this stage, the supplier does not need to provide any additional data or product samples, making it a low-effort submission. Typically, Level 1 is used when the parts being produced are already approved, and the process is well-established.

Level 2: PSW with Product Samples and Limited Supporting Data

At Level 2, the supplier submits the PSW along with product samples for the customer’s review. The submission includes limited supporting data to demonstrate that the parts meet the required specifications. This level is often used for parts that are slightly modified or re-engineered but still relatively simple.

Level 3: PSW with Product Samples and Complete Supporting Data

Level 3 is the most common level used in PPAP submissions. It requires the PSW along with product samples and complete supporting data. This data includes detailed test results, process documentation, and quality control measures to show that the parts meet both customer and regulatory requirements. This level is often applied to new products or parts with significant changes in design or manufacturing processes.

Level 4: PSW with Additional Requirements as Specified by the Customer

At Level 4, the supplier submits the PSW and product samples, but with additional requirements set by the customer. These may include specific data or documentation requested for unique or complex parts. Level 4 is typically used when the customer has specific requirements that go beyond the standard submission, such as additional testing or certifications.

Level 5: PSW Available for Review at the Supplier’s Manufacturing Site

Level 5 is the most comprehensive level. It requires the PSW, product samples, and full documentation to be available for review at the supplier’s manufacturing site. This allows the customer to inspect the production process and verify that the parts are being produced according to specifications. This level is used for high-risk parts or those that require extensive validation before mass production.

Benefits of PPAP in Manufacturing

The Production Part Approval Process (PPAP) provides several key advantages for both manufacturers and their customers. Here are some of the primary benefits of implementing PPAP in manufacturing:

• Ensures Consistent Product Quality: Guarantees parts meet customer specifications, reducing defects and variations.
• Reduces Production Risks: Identifies potential issues early, minimizing costly delays, defects, and rework.
• Improves Supplier Relationships: Builds trust through transparent documentation and demonstrates commitment to quality.
• Streamlines Approval Process: Standardizes requirements, leading to faster approval and smoother product launches.
• Enhances Compliance and Documentation: Helps manufacturers meet industry standards and regulatory requirements.
• Reduces Costs and Waste: Prevents faulty parts, lowering scrap rates and optimizing resource usage.

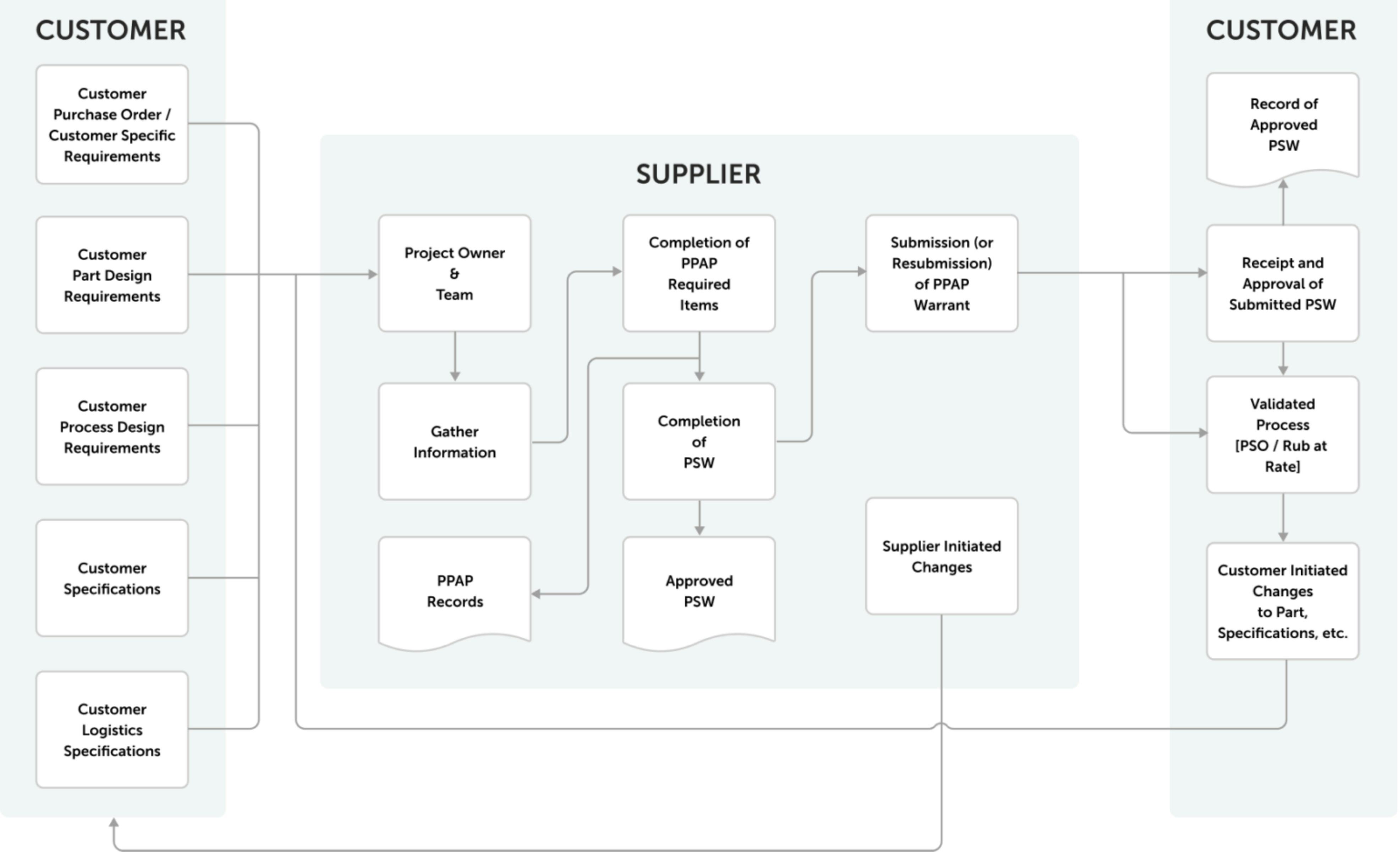

The PPAP Process Flow

The PPAP process is a structured approach used by manufacturers to demonstrate that they can produce parts that consistently meet customer design and quality specifications. Here’s a breakdown of the key steps in the PPAP process, tailored to ensure quality and consistency throughout the production journey.

Initial Part Submission and Documentation Review

The supplier submits the initial part along with essential documentation to the customer for evaluation. The OEM then reviews the submission, ensuring that the part meets all design specifications and dimensional requirements. If any issues are found, the supplier is required to make corrections before proceeding further.

Design Validation: Ensuring Function and Performance

This stage tests whether the part meets all functional and performance requirements. The part undergoes prototype testing to ensure it works as intended in real-world applications. If any issues are detected, revisions are made before moving to process validation.

Process Validation: Ensuring Production Consistency

Here, the supplier confirms that the manufacturing process can consistently produce parts that meet specifications. Pilot runs or initial production runs are performed to evaluate process stability, and capability studies (such as CpK analysis) ensure consistent product quality. If process flaws are identified, adjustments are made.

Production Trial and Scalability Check

A trial production run is done at scale to simulate actual production conditions. The supplier tests the efficiency, quality consistency, and timeliness of the manufacturing process, identifying any potential issues that could affect mass production.

Final Approval or Feedback for Improvement

After design and process validation, the part is either approved for mass production or returned for improvements. If the part passes, a Part Approval Certificate is issued. If issues remain, feedback is given, and the part must undergo further revisions before final approval.

Common Challenges and Best Practices in PPAP Implementation

While the Production Part Approval Process (PPAP) is crucial for ensuring quality and consistency, it does come with its challenges. Here are some common hurdles manufacturers face, along with strategies to overcome them:

• Incomplete or Inaccurate Documentation
• Challenge: Missing or incorrect information on documents like Part Submission Warrants (PSWs), engineering drawings, or process flow diagrams can delay the approval process.
• Best practice: Ensure all required documents are complete and accurate. Implement an internal review process to catch errors before submission.
• Lack of Coordination Between Teams
• Challenge: Miscommunication or delays between design, quality control, and production teams can cause setbacks.
• Best practice: Improve cross-department communication and set clear roles and timelines. Use project management tools to track progress and align teams.
• Failure to Meet Customer Expectations
• Challenge: Misalignment with the customer’s specifications or unclear requirements can lead to rejection or delays.
• Best practice: Collaborate closely with the customer to define expectations early on. Regularly check in with the OEM to ensure alignment throughout the process.
• Time Constraints
• Challenge: Tight deadlines and unforeseen issues can extend the PPAP process, causing delays and mistakes.
• Best practice: Allocate sufficient time for each step of the process and include buffer periods to accommodate revisions or unexpected delays.
• Difficulty in Conducting Process Validation
• Challenge: Ensuring that the manufacturing process is capable of consistently producing parts can be one of the most difficult aspects.
• Best practice: Use advanced monitoring techniques like CpK analysis to evaluate process capability. Implement continuous process improvement practices to ensure stability.
• Limited Resources or Expertise
• Challenge: Smaller manufacturers or those without in-house expertise may struggle with the complexity of the PPAP process.
• Best practice: Invest in PPAP training or consult with experts. Consider leveraging industry resources and joining professional groups for guidance and best practices.

Key Documentation for PPAP

The PPAP process requires several key documents to validate the product design and manufacturing process. These documents ensure compliance with customer requirements and quality standards.

• Part Submission Warrant (PSW) - The main document requesting part approval, detailing part and process information.
• Engineering Drawings - Detailed specifications of the part’s design, including dimensions, tolerances, and material requirements.
• Material Certifications - Verification that materials meet required specifications, provided by the material supplier.
• Process Flow Diagrams - Visual representations of the manufacturing process, identifying key steps and potential bottlenecks.
• Control Plan - Outlines how quality will be maintained throughout production, with monitoring and inspection points.
• Failure Mode and Effects Analysis (FMEA) - Identifies potential risks in design (DFMEA) and process (PFMEA) and suggests ways to mitigate them.
• Capability Studies - Assesses whether the manufacturing process can consistently produce parts within specified tolerances (e.g., CpK analysis).
• Measurement System Analysis (MSA) - Ensures the accuracy and consistency of measurement systems used during production.
• Production Part Approval Warrant (PPAW) - Final document confirming the part has passed all validation and is ready for mass production.

Conclusion: Mastering PPAP for Consistent Quality

By providing complete PPAP documentation, rapid prototyping, and efficient management of compliance and quality control, Geomiq ensures that manufacturers can produce parts that consistently meet customer specifications. By following each step carefully, manufacturers can minimize risks, reduce production errors, and improve overall product reliability.

Get started today with Geomiq to ensure your parts meet the highest standards with complete PPAP documentation, from prototyping to production.
