How to Cut Sheet Metal for Precision Manufacturing with the Right Tools and Techniques

When it comes to precision manufacturing, cutting sheet metal is one of the most critical processes. The quality of the cut determines the overall finish, fit, and performance of the final product. Whether you're working on a small prototype or a mass production run, using the right sheet metal cutting tools and techniques is essential. In this article, we’ll guide you through the best methods and sheet metal cutting tools, ensuring precision and quality for your manufacturing needs.

Understanding Sheet Metal Cutting

Cutting sheet metal is a process that’s essential in the creation of a variety of components used in industries ranging from automotive to aerospace. It’s not just about getting the job done, precision and the right sheet metal cutting tools make the difference between quality and waste. Whether you're crafting intricate parts or large panels, knowing how to cut sheet metal correctly ensures a flawless outcome, minimizes material waste, and improves overall production efficiency.

What is Sheet Metal Cutting?

Sheet metal cutting involves removing material from a metal sheet to achieve the desired shape or design. It’s one of the most important stages in sheet metal fabrication, supporting industries such as automotive, aerospace, construction, and electronics. Precision is key to ensuring that the cuts are clean, accurate, and fit the specific requirements of the project and choosing the right sheet metal cutting tools is central to that process.

Why Precision Matters in Manufacturing

Precision cutting ensures that components fit perfectly, maintain structural integrity, and perform as expected. Poor cuts can lead to misaligned parts, excessive material waste, and higher production costs. As part of high-quality sheet metal services, focusing on precision and using purpose-built sheet metal cutting tools helps manufacturers reduce defects, improve product quality, and streamline the overall production process.

Essential Sheet Metal Cutting Tools for Precision

When it comes to cutting sheet metal, there are several tools available. These sheet metal cutting tools can range from manual instruments to automated machines that offer maximum precision. Each tool has its specific use case depending on the project's scale, sheet metal material thickness, and complexity.

Manual Cutting Tools

For smaller projects or thicker materials, manual tools can be a practical choice. These tools offer great control and accuracy when used properly. Some of the most common manual cutting tools include:

• Tin Snips: Ideal for cutting thin sheets of metal with precision. They come in straight, left, and right-cut styles.
• Metal Shears: Similar to tin snips but larger and capable of handling thicker materials.
• Hacksaws: Suitable for cutting metal pipes or rods, though they require more effort and are slower than other options.

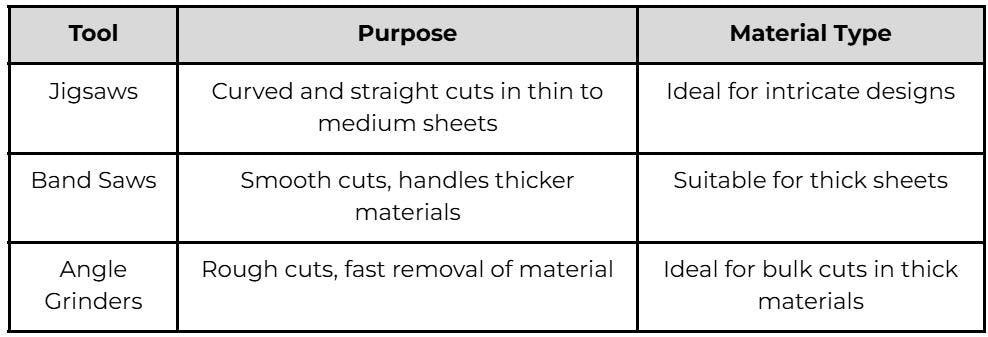

Power Tools for Faster Cuts

As projects scale, learning how to cut sheet metal with power tools becomes essential for increased speed and efficiency. These sheet metal cutting tools are ideal when working with larger sheets or when you need to cut through tougher materials quickly.

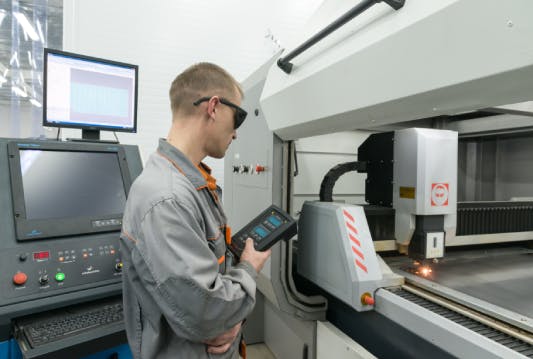

CNC Machines for Maximum Precision

For high-precision manufacturing, CNC (Computer Numerical Control) machines are the gold standard in sheet metal cutting tools. These machines offer automated cutting processes that ensure consistency and repeatability. When comparing CNC machining vs sheet metal fabrication, CNC is often favored for complex designs and high-volume production due to its speed and precision. The accuracy of CNC cutting is unmatched, providing cuts with tolerances as tight as ±0.001mm.

Techniques for Achieving Clean and Accurate Cuts with Sheet Metal Cutting Tools

The method you choose for how to cut sheet metal will depend on factors like the material, thickness, and complexity of the design. Understanding each technique’s advantages is crucial for selecting the right one, and pairing it with the best sheet metal cutting tools.

Laser Cutting: The Most Precise Method

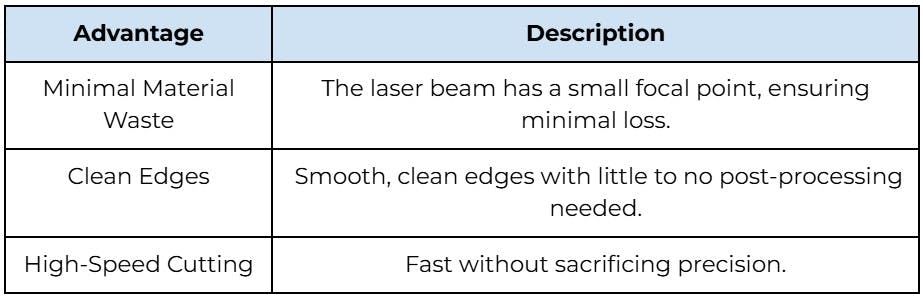

Laser cutting is one of the most accurate methods for cutting sheet metal, particularly for intricate designs. Here’s why it’s preferred in many industries:

Laser cutting is ideal for projects requiring high precision, such as electronics, medical devices, and automotive components.

Plasma Cutting: Speed with Precision

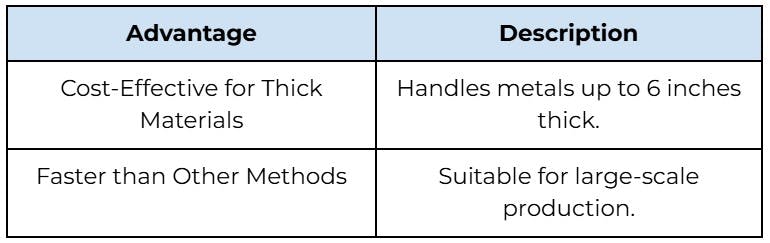

Plasma cutting uses a high-velocity jet of ionized gas to melt and blow away metal, allowing for rapid cuts. While not as precise as laser cutting, plasma cutting is faster and highly effective for thicker metals.

Plasma cutting is a great choice for applications where speed is important, and the tolerance requirements are not as tight.

Water Jet Cutting: Ideal for Delicate Materials

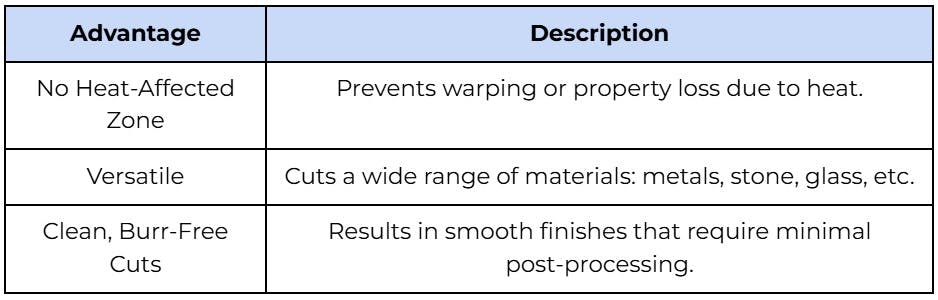

Water jet cutting uses a high-pressure stream of water mixed with abrasive particles to cut through metals. This method is ideal for materials that can be damaged by heat, such as aluminum or titanium. Some advantages of water jet cutting include:

Water jet cutting is perfect for delicate materials or projects where heat distortion cannot be tolerated.

Shearing and Punching

Shearing involves cutting large sheets of metal with a single stroke of a blade, while punching uses a punch and die to make holes in the sheet. These techniques are best suited for straight, repetitive cuts.

• High-Speed Production: Ideal for high-volume manufacturing
• Accuracy: Good precision for standard shapes and sizes
• Cost-Effective: More affordable for simple shapes than other cutting methods


Preparing Your Metal for a Perfect Cut Using Sheet Metal Cutting Tools

Before starting the cutting process, proper preparation is essential. Ensuring your sheet metal is securely clamped, measured accurately, and marked precisely will help you achieve the desired result based on your sheet metal design and the tools you're using.

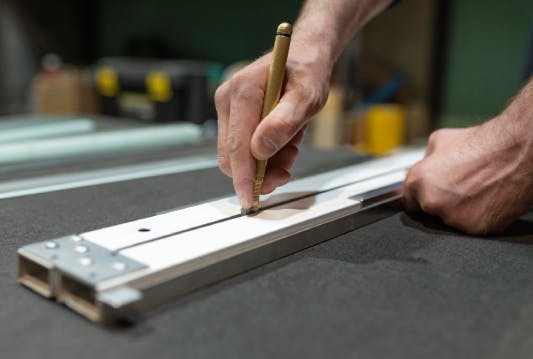

Measuring and Marking Techniques

Accurate measurements and markings are critical to ensuring that your cuts align with the design. Here are some helpful tips:

• Use a Steel Ruler or Calipers: Ensure all measurements are accurate down to the millimeter.
• Mark with a Permanent Marker or Scribe: Choose between clear visibility or permanent precision.


Clamping and Securing Metal

Clamping the metal securely prevents any movement during the cutting process, which could lead to inaccurate cuts. Double-check that the material is stable, especially when using power sheet metal cutting tools.

Cutting Guide Setup

For straight cuts, using a guide can ensure that the cut stays on track. A ruler, square, or even a custom-built jig can help keep your cutting tool aligned with your desired cut path.

Choosing the Right Sheet Metal Cutting Tools for Your Project

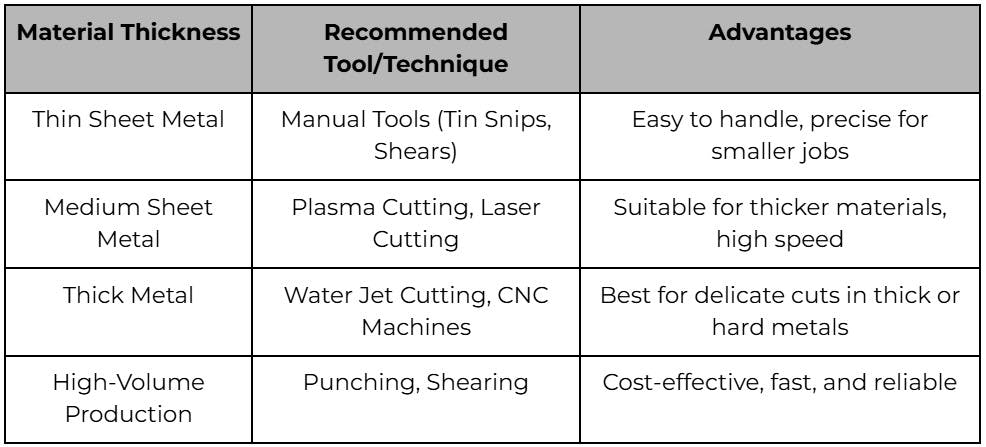

The technique you choose for how to cut sheet metal depends on several factors, including the material, thickness, and complexity of the design. Choosing the right method can also help reduce sheet metal cost by minimizing waste and improving efficiency. Here’s a quick decision guide to help you:

For large-scale projects, integrating automated systems and CNC machines can improve precision, speed, and efficiency.

Common Mistakes to Avoid When Using Sheet Metal Cutting Tools

Precision cutting requires attention to detail, and avoiding common pitfalls is just as important as choosing the right sheet metal cutting tools. Here are the most frequent mistakes and how to prevent them:

• Underestimating Material Thickness: Using tools not rated for your metal's thickness can lead to jagged edges, tool breakage, and inefficient cutting. Always match your tool’s capacity with the material specs.
• Using the Wrong Cutting Method: Choosing inappropriate methods for the job, like using a jigsaw on thick gauge steel or a plasma cutter on delicate aluminum, can compromise accuracy and safety. Evaluate both the material and design complexity before selecting your cutting technique.
• Not Securing the Material Properly: Loose sheet metal can shift during cutting, leading to uneven lines, dangerous kickbacks, or injury. Always clamp securely and double-check stability, especially when using power tools or CNC machines.
• Skipping Measurements and Markings: Relying on guesswork or rough estimates increases the risk of errors. Always measure with precise tools like calipers or digital rulers and clearly mark your cut lines with a scribe or permanent marker.
• Neglecting Tool Condition: Dull blades, worn cutting edges, or uncalibrated machines can ruin a perfect cut. Perform regular maintenance and inspect your sheet metal cutting tools before every use.
• Ignoring Safety Gear: Not wearing gloves, eye protection, or proper clothing when cutting metal can result in serious injuries. Always prioritize personal safety when operating manual, powered, or automated tools.
• Cutting Too Fast or Too Slow: Rushing through a cut can cause overheating, burrs, or tool failure. On the flip side, cutting too slowly may deform the material. Learn the optimal feed rate for each tool and material type.

Maintenance and Longevity of Sheet Metal Cutting Tools

To ensure that your sheet metal cutting tools remain effective, regular maintenance is essential.

• Manual Tools: Sharpen blades regularly and keep them clean
• Power Tools: Replace worn blades, lubricate moving parts
• CNC Machines: Keep machines calibrated and perform diagnostics to catch errors early


Integrating Sheet Metal Cutting Tools into a Manufacturing Workflow

Modern manufacturing often requires efficient and repeatable cutting processes. Computer Aided Process Planning CAPP for sheet metal cutting operations in the manufacturing industry is increasingly becoming the standard for ensuring consistency and minimizing human error. These systems help define optimal cutting sequences, select the right sheet metal cutting tools, and integrate seamlessly with CNC machines and automation platforms.

Optimizing Efficiency with Automation

Automation helps streamline the cutting process, particularly for high-volume production. By integrating automated sheet metal cutting tools into the workflow, manufacturers can reduce waste and downtime.

The Role of Advanced Technology in Precision Manufacturing

The integration of advanced technologies such as digital platforms for sourcing materials and collaborating with global suppliers can significantly improve how sheet metal cutting tools are used in precision workflows.

Let Geomiq Help You Elevate Your Projects with the Right Sheet Metal Cutting Tools

Choosing the right sheet metal cutting tools isn’t just about getting the job done, it’s about achieving better precision, lower waste, and faster turnaround. Whether you're building prototypes or scaling up production, the right tools give you the edge in quality and efficiency.

Geomiq’s platform connects you with trusted partners and advanced manufacturing capabilities, helping you make smarter, faster decisions at every stage of the process. Let us support your next project with the precision, speed, and reliability that modern manufacturing demands.
