What is Heat Treatment and How Does it Improve CNC-Machined Parts?

In CNC machining, the performance of a part isn’t defined by its geometry alone. The material properties, how strong, tough, or wear-resistant the part is, determine whether it can withstand real-world conditions. That’s where heat treatment comes in.

In manufacturing, heat treatment is commonly used to enhance the physical and mechanical properties of metals, making them more suitable for demanding applications. By carefully controlling the heating and cooling processes, engineers can modify characteristics like hardness, ductility, and dimensional stability to meet the specific performance requirements of CNC-machined parts.

What is Heat Treatment?

Heat treatment is a process that involves heating metals to a specific temperature and then cooling them at a controlled rate to alter their properties. This process improves characteristics like hardness, strength, and toughness, making metals more suitable for demanding applications.

In CNC machining, heat treatment is often used to enhance the performance of parts after they are machined. Whether it's CNC machining materials for precision parts or aluminum for structural components, heat treatment fine-tunes the material's strength and durability, ensuring it meets the performance standards required for the final product.

This process is vital for ensuring that CNC-machined parts can handle wear, stress, and high temperatures without failing, making it an integral part of high-quality manufacturing.

When and Why to Apply Heat Treatment in CNC Manufacturing?

In CNC machining, the timing of heat treatment plays a critical role in achieving the desired material properties for the final part. Whether it's before, during, or after machining, the choice of when to apply heat treatment depends on the material and the intended performance of the part.

Before Machining

Applying heat treatment before machining can make hard or tough materials easier to process. For example, annealing is often used to soften metals, making them more ductile and easier to machine. This reduces tool wear and helps prevent the material from cracking or chipping during machining. This approach is common with hard-to-machine alloys, such as certain steels or aluminum.

After Machining

More commonly, heat treatment is applied after machining to achieve specific material properties, such as hardness and strength. Processes like quenching and tempering are typically done after the part is machined to ensure the final dimensions are precise. This approach allows manufacturers to machine the part in a softer, more workable state and then apply heat treatment to harden it to the necessary specifications. For example, CNC milling is often used to create complex shapes, where heat treatment is essential to ensure the final part maintains its durability and performance.

Between Machining Steps

Sometimes heat treatment is applied between machining stages, especially for complex parts that require multiple operations. This can help relieve internal stresses caused by previous machining steps, ensuring the part maintains its shape and dimensions during further processing. It also helps improve dimensional stability, especially for parts that will undergo additional machining after heat treatment.

Common Heat Treatment Methods for CNC-Machined Parts

Each method is designed to achieve specific goals depending on the part’s intended application. Below are some of the most common heat treatments for CNC-machined metal parts.

Annealing

Annealing is a process in which metals are heated to a high temperature and then cooled slowly, often in a furnace. This gradual cooling allows the material to become softer and more ductile, which improves its machinability. By relieving internal stresses, annealing makes materials easier to cut, shape, or form. This method is typically applied to metals like steel and aluminum alloys before machining to ensure they can be processed without risk of cracking.

Quenching

Quenching involves heating the metal to a high temperature and then rapidly cooling it, usually in water, oil, or air. The rapid cooling creates a fine microstructure that increases the hardness of the material but also makes it more brittle. This process is essential for parts that need to be harder and more resistant to wear, such as gears or cutting tools. After quenching, materials are often further treated to reduce brittleness, making them suitable for high-stress applications.

Tempering

After quenching, the metal is often subjected to tempering, where it is reheated to a moderate temperature and cooled slowly. This process helps reduce the brittleness created by quenching while maintaining the material’s hardness. Tempering is critical for parts that need a balance of strength and toughness—for example, tool steels or high-carbon steels used in machining. By tempering, the material becomes less prone to cracking under impact, which is essential for components that face dynamic loads.

Case Hardening (Carburizing)

In case hardening, also known as carburizing, the surface of a material is infused with carbon while the core remains softer and more ductile. The part is heated in a carbon-rich environment and then quenched to lock in the hard surface. This method is particularly beneficial for parts like CNC turning services and camshafts that require a hard outer surface to resist wear but need to maintain shock resistance in the interior. Case hardening ensures the part can withstand high friction while maintaining overall toughness.

Precipitation Hardening (Age Hardening)

Precipitation hardening, or age hardening, involves heating the material, quenching it, and then aging it at a lower temperature to allow fine precipitates to form within the metal. These precipitates increase the strength of the material by blocking dislocation movement in its crystal structure. This process is commonly used for aluminum alloys and titanium, especially in industries like aerospace, where lightweight yet strong materials are required for high-performance parts.

Stress Relieving

Stress relieving is a heat treatment used to reduce internal stresses in a material without significantly changing its microstructure. The metal is heated to a moderate temperature and then cooled slowly to allow any residual stresses to relax. This process is essential for ensuring dimensional stability in large components such as machine frames or structural parts. By relieving stresses, stress relieving helps prevent warping or cracking during further machining or when the part is exposed to operational conditions.

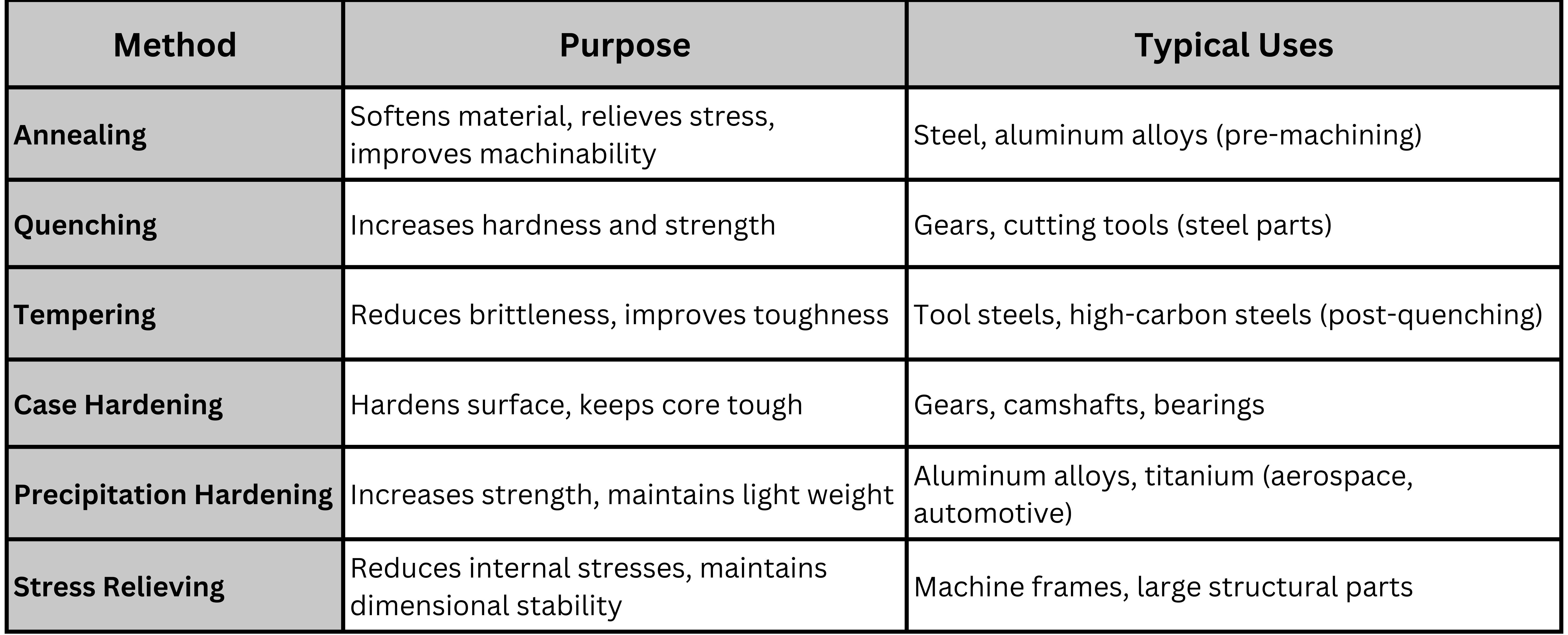

heat treatment methods

Advantages and Disadvantages of Heat Treatment

Heat treatment offers a range of benefits that can significantly improve the performance and longevity of CNC-machined parts. However, like any process, it comes with some drawbacks that need to be considered during manufacturing.

Advantages of Heat Treatment

  • Enhanced Material Properties - Heat treatment can significantly improve key material properties like hardness, strength, and wear resistance, making parts more durable and capable of withstanding tough conditions.
  • Increased Durability and Longevity - Parts that undergo heat treatment are more resistant to wear, stress fatigue, and corrosion, leading to a longer service life and fewer replacements.
  • Improved Dimensional Stability - Heat treatment helps reduce internal stresses, ensuring that parts maintain their shape and size, which is crucial for precision and complex geometries.
  • Versatility with Material Types - Heat treatment can be tailored to specific material requirements, allowing manufacturers to create parts with a hard outer surface and a tough core, offering a balance of durability and flexibility.

Disadvantages of Heat Treatment

  • Cost and Time Intensive - Heat treatment can add significant costs and time to the manufacturing process due to equipment, energy consumption, and extended cycle times. However, by optimizing the heat treatment process, manufacturers can reduce CNC machining costs while maintaining the part's high performance.
  • Risk of Distortion or Warping - Improper heating or cooling can cause parts to warp, leading to the need for additional processing or rework to meet tolerances.
  • Limited Material Compatibility - Some materials, like softer metals, may not benefit from heat treatment or may require specialized processes, adding complexity and cost.
  • Potential for Increased Brittleness - Some heat treatments, particularly quenching, can make materials more brittle unless they are properly tempered afterward, risking part failure under certain conditions.

Optimizing CNC Parts with Geomiq’s Expertise

Heat treatment is a crucial process in CNC machining that enhances material properties such as strength, durability, and wear resistance. The right heat treatment method ensures that parts meet specific performance requirements, whether for impact toughness, dimensional stability, or corrosion resistance.

Our platform provides a seamless experience, allowing users to upload CAD models, receive instant quotes, and select manufacturing preferences, ensuring the optimal heat treatment process is applied to each part. By leveraging Geomiq's expertise and services, manufacturers can achieve parts that not only meet design specifications but also perform reliably in demanding applications.
