CNC Machining Tolerances Guide

Discover the fundamentals of CNC machining tolerances and their significance. Learn how to calculate tolerances, explore standard tolerances and etc.

CNC Machining Tolerances Guide

CNC machining is a widely used manufacturing process that involves the use of computer-controlled machines to shape and form various materials. Machining tolerances play a crucial role in ensuring the accuracy and precision of the final machined parts. Understanding and adhering to specific tolerance requirements is essential to meet the desired design specifications. In this guide, we will explore the concept of machining tolerances, common terms associated with CNC machining tolerances, standardized tolerance charts, considerations for choosing machining tolerances, achieving optimal tolerances, and more. In this comprehensive CNC machining guide, we will delve into the intricacies of machining tolerances and provide valuable insights to help you navigate the world of precision manufacturing.

What are Machining Tolerances?

Machining tolerances refer to the allowable variation in dimensions, shape, and position of a machined part from the intended design specifications. These tolerances are essential because it is nearly impossible to manufacture parts with absolute perfection. Tolerances are specified to ensure that the machined parts fit together, function properly, and meet the required performance standards. They are expressed as a range of acceptable values within which the dimensions and characteristics of the part must fall.

When it comes to milling tolerances and lathe tolerances, precision is key in achieving accurate and flawless results. Understanding the CNC machining tolerance chart and adhering to tight tolerance machining practices are vital for ensuring high-quality outcomes. Tolerance in machine design, along with compliance with CNC tolerance standards, ensures the proper fit and functionality of machined parts. High tolerance machining requires meticulous attention to detail, and understanding typical tolerances for machining aids in setting realistic expectations. Close tolerance machining is crucial for intricate designs, while standard tolerance for machined parts provides a baseline for general manufacturing requirements.

Understanding Common Terms Related to CNC Machining Tolerances

To grasp the concept of machining tolerances fully, it's important to familiarize ourselves with some common terms associated with tolerance specifications. Let's explore a few of these terms:

Basic Size: Basic size refers to the theoretical size of a part without considering any tolerance.

Actual Size: Actual size represents the measured size of a part after machining.

Limits: Limits define the range of acceptable sizes within which the actual size of a part must fall.

Deviation: Deviation is the algebraic difference between the maximum and minimum limits of a dimension.

Datum: A datum is a specific point, line, or surface used as a reference for dimensioning and tolerancing.

Tolerance Zone: The tolerance zone refers to the range or space between the upper and lower limits within which the actual dimensions of a part are permitted to fluctuate.

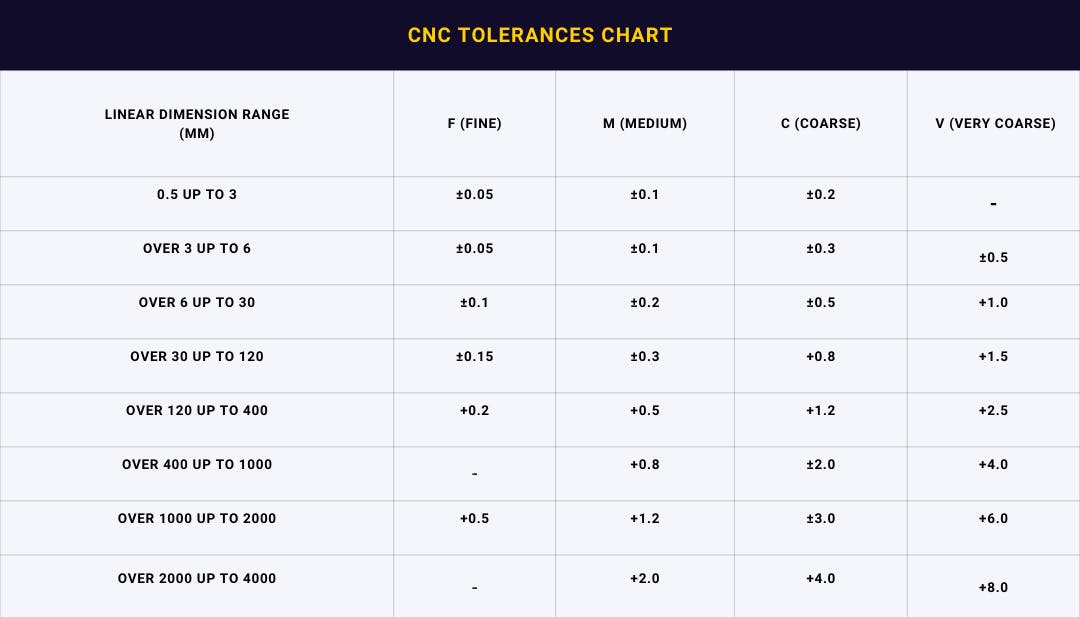

CNC Tolerances Chart: A Comprehensive Reference for Precision Machining

In the realm of CNC machining, precision is paramount, and understanding tolerances is crucial for achieving accurate and reliable results. Our CNC Tolerances Chart serves as a comprehensive guide, offering a visual representation of permissible variations in dimensions during the machining process. This chart provides a quick reference for machinists and engineers, outlining acceptable limits for various parameters such as dimensions, surface finishes, and geometric features.

Maximum Material and Least Material Requirements

In machining, the maximum material requirement (MMC) and the least material requirement (LMC) are crucial concepts related to tolerances. MMC specifies the maximum limit of a part's size, ensuring it contains the most amount of material, while LMC specifies the minimum limit, ensuring it contains the least amount of material. These requirements are important in applications where maximum strength or minimum clearance is desired.

How to Calculate CNC Machining Tolerances

Calculating tolerances involves considering various factors such as the function of the part, the desired fit, the manufacturing process, and the material being used. Tolerances can be specified using different systems, including bilateral and unilateral tolerances. Bilateral tolerances allow for variation on both sides of the nominal dimension, while unilateral tolerances allow for variation on only one side.

To calculate tolerance, we need to establish the upper and lower limits for the process. For example, if the lower limit is 1mm and the upper limit is 5mm, then the calculation of the tolerance would be as follows:

tolerance (t) = upper limit - lower limit

t = 5 - 1 = 4mm

Different Types of Machining Tolerances

Machining tolerances can be categorized into various types based on their specific characteristics. Here are a few commonly encountered types:

Unilateral Tolerance: In unilateral tolerance, the variation is allowed only on one side of the nominal dimension.

Bilateral Tolerance: Bilateral tolerance allows for variation on both sides of the nominal dimension.

Limit Tolerances: Limit tolerances define the upper and lower limits within which the actual size of a part must fall.

Profile Tolerances: Profile tolerances specify the allowable variation in the form, shape, and contour of a part.

Orientation Tolerance: Orientation tolerance controls the permissible deviation in the angular orientation of features.

Standard CNC Machining Tolerances

The following are typical tolerances for various CNC machining processes:

Router: ± 0.005″ or 0.13 mm

Lathe: ± 0.005″ or 0.13 mm

Router (Gasket Cutting Tools): ± 0.030″ or 0.762 mm

Milling (3-axis): ± 0.005″ or 0.13 mm

Milling (5-axis): ± 0.005″ or 0.13 mm

Engraving: ± 0.005″ or 0.13 mm

Rail Cutting Tolerances: ± 0.030″ or 0.762 mm

Screw Machining: 0.005″ or 0.13 mm

Steel Rule Die Cutting: ± 0.015″ or 0.381 mm

Surface Finish: 125RA

Considerations for Choosing Machining Tolerances

When determining the appropriate machining tolerances for a project, several factors should be considered:
High Costs for Tight Requirements: Tight tolerances generally require more precise machines, higher-quality materials, and additional time for inspection, which can increase manufacturing costs.

Surface Roughness: Tolerances can influence the surface finish of machined parts. Tighter tolerances may require additional operations to achieve the desired surface quality.

Choice of Manufacturing Methods: Different manufacturing methods have varying capabilities in achieving specific tolerances. It's crucial to select the most suitable method for the desired tolerance requirements.

Choice of Materials: Material properties, such as thermal expansion or brittleness, can affect the achievable tolerances. Understanding the characteristics of the chosen material is essential for accurate tolerance determination.

Inspection of Finished Product: The availability of appropriate measurement tools and techniques for inspecting the finished product must be considered when specifying tolerances.

What is Tight Tolerance and When Do You Need It?

Tight tolerance refers to the narrow range of allowable variation in dimensions, shape, or position of a machined part. Tight tolerances are typically required in applications where precision, reliability, or compatibility with other components is critical. Industries such as aerospace, medical, and automotive often demand tight tolerances to ensure optimal performance and safety.

Tips to Achieve Optimal Tolerances in CNC Machining

To achieve optimal tolerances in CNC machining, consider the following tips:

Consider the Application of Your Parts:

Understand the functional requirements and intended use of the parts to determine the appropriate tolerances.

Avoid Unnecessarily Tight Tolerances:

Specify tolerances that are necessary for the desired function and fit of the parts. Overly tight tolerances can increase costs and production time without providing significant benefits.

Choose a Machine of Required Capability:

Select a CNC machine with the necessary precision, accuracy, and capabilities to meet the specified tolerances.

Consider the Peculiarities of the Used Material:

Different materials have varying machinability characteristics. Understanding the behavior of the material during machining helps in determining suitable tolerances.

Find the Right CNC Machining Service:

Collaborate with a reputable CNC machining service provider with experience in meeting tight tolerances. Effective communication and technical expertise are crucial for achieving optimal results.

CNC Machining Tolerances FAQ

Q: What is tolerance in CNC machining?

A: Tolerance in CNC machining refers to the allowable variation in dimensions, shape, or position of a machined part from the intended design specifications.

Q: How do you determine machining tolerance?

A: Determining machining tolerance involves considering factors such as part function, desired fit, manufacturing process, and material characteristics. Tolerances can be specified using various systems, such as bilateral or unilateral tolerances.

Q: Which tolerance is most difficult to machine?

A: Achieving tight positional tolerances, such as concentricity or parallelism, can be challenging in CNC machining due to the need for precise alignment and control of multiple features.

Q: Why is tolerance important in machining?

A: Tolerances play a crucial role in machining by ensuring that parts have the appropriate fit, functionality, and ability to be interchanged effectively.They help maintain quality, performance, and compliance with design specifications.

Q: What is the limit of tolerances?

A: The limit of tolerances refers to the upper and lower bounds within which the actual size or characteristics of a machined part must fall to meet the specified requirements.

Tolerance determination in CNC machining involves considering factors such as part function, desired fit, manufacturing process, and material characteristics, and it is particularly challenging to achieve tight positional tolerances, such as concentricity or parallelism, in CNC machining, which is crucial for ensuring optimal performance and interchangeability of CNC milled parts and CNC turning parts.

Machining tolerances are critical in CNC machining to ensure the accuracy, functionality, and compatibility of machined parts. Understanding the concept of tolerances, familiarizing yourself with the associated terminology, and referring to standardized tolerance charts are essential steps in achieving desired design specifications. Considering various factors when choosing tolerances, such as cost implications, surface finish requirements, and material characteristics, helps strike a balance between precision and practicality. By following best practices and collaborating with experienced CNC machining services, optimal tolerances can be achieved, leading to high-quality machined parts that meet the intended application requirements.
